N-Type Male RF Connector for RG142B/U Coaxial Cable – Threaded

  • 1
  • 2
  • 3

Brand Name : SIPU

Place of Origin : China

MOQ : 50

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram

Model Number : N-J5A-11

Certification : ISO9001, RoHS, CE

Price : Discuss

Packaging Details : Carton

Supply Ability : 1000000pcs

Delivery Time : 5-8work days

Product name : N-Type Male RF Connector for RG142B/U Coaxial Cable – Threaded

Gender : Male

Type : Straight

Material : Brass

Plating : Nickel

Contact Now

N-Type Male RF Connector for RG142B/U Coaxial Cable – Threaded

Product Overview

The N series is a medium-power RF connector with a threaded coupling mechanism, developed in accordance with MIL-C-39012 and IEC 60169-16 standards. It offers strong vibration resistance, high reliability, and excellent mechanical and electrical performance. The connector is compatible with international equivalents for seamless interchangeability.

Applications
Ideal for use in:

Communication systems

Radio equipment

Ground-based transmission systems

Product Features

Detachable screw sleeve design

Inner and outer conductor welding

Mates with RG142B/U RF coaxial cable

Wide frequency bandwidth

Strong mechanical durability and electrical stability

Resistant to shock and vibration

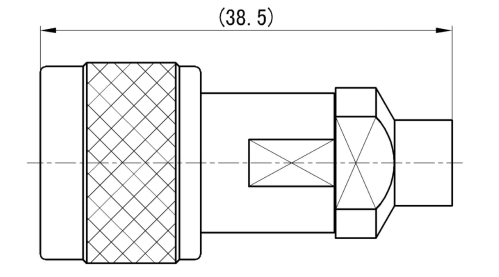

Product Appearance

N-Type Male RF Connector for RG142B/U Coaxial Cable – Threaded

Important Technical Parameters

Electrical property

 Temperature range -65～+125℃

Characteristic impedance

 50Ω Frequency range DC-11GHz

Dielectric withstanding voltage

 1500V VSWR ≤1.25

Insulation resistance

 ≥5000MΩ Insertion loss ≤0.06√F(GHz)dB

Contact resistance

 Center conductor ≤1.5mΩ Mechanical property
Outer conductor ≤0.2mΩ Durability 500 times

Materials and Surface Treatment

Center conductor

 Brass, gold plating Insulating medium PTFE

Outer conductor

 Brass, nickel plating / /

Product Image Gallery

N-Type Male RF Connector for RG142B/U Coaxial Cable – Threaded
